DIASYS LAMP

8900 zł netto
got questions?

Based on advantageous LED technology, Diasys is a smart examination and procedure light featuring a central luminous intensity of 65 000 lux.

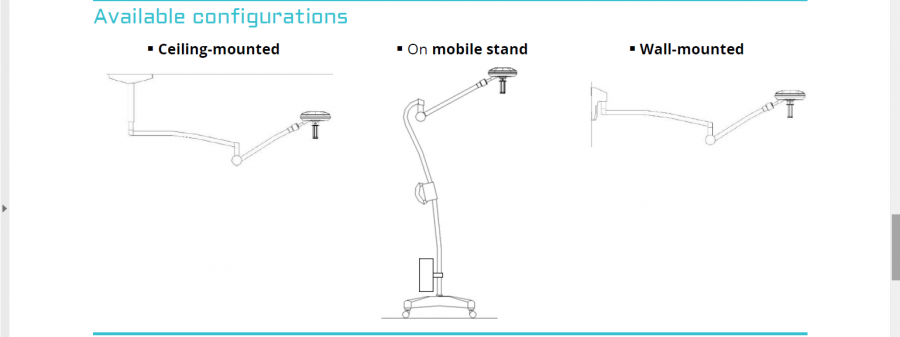

Diasys is composed of an extra-flat light head and featured with innovative and patented Motion-Matic technology. Diasys is available under ceiling-mounted, wall-mounted and mobile configurations.

Innovations

  • Motion-Matic (patent pending) :

Luminous intensity can be controlled without direct contact with the light by using a sensor present on the side of the light head which detects the movement of the hand.

  • Automatic switch on / off :

Automatic switch on when the light head is moved.
Automatic switch off when the light head is oriented toward the ceiling or after 30 minutes of inactivity for an unequaled comfort of use and greater energy savings.

Options

  • Sterile central handle
  •  Backup power supply : In case of main power failure, the back-up power supply allows the light to continue to operate for 7 hours.

    Technical data
    Optical data
    Diasys Technology LED
    Max central light intensity* (Ec)
    65 000 Lux Variation of light intensity* From 30 000 to 65 000 Lux in 3 steps
    Fixed light field diameter*
    14 cm Constant focal depth L1+L2* 128 cm
    Color Rendering Index Ra*
    96 Red Rendering Index R9* 95
    Color Temperature*
    4200K Automatic switch on Yes thanks to Motion-Matic patented technology which allows an automatic switch on as soon as the DIASYS is moved
    Automatic switch off
    Yes after 30min without any movement or when the DIASYS is oriented toward the ceiling Luminous intensity adjustable directly by the sterile user Yes thanks to Motion-Matic technology which allows a gesture control by the sterile staff directly from the optic cell.
    Electric data
    Diasys Power supply & Frequency 100 à 240 VAC ; 50/60Hz
    Voltage
    24 VDC Max power consumption 7 W
    LED lifetime
    60 000h Number of LEDs 4
    LED type
    White Protection IP54
    Mechanical data
    Diasys Dimension of cupola 30 x 24.5 cm
    Weight of cupola
    2kg (with yoke) Light emitting surface 90 cm²
    Typical data at 1m distance in compliance with IEC 60601-2-41
